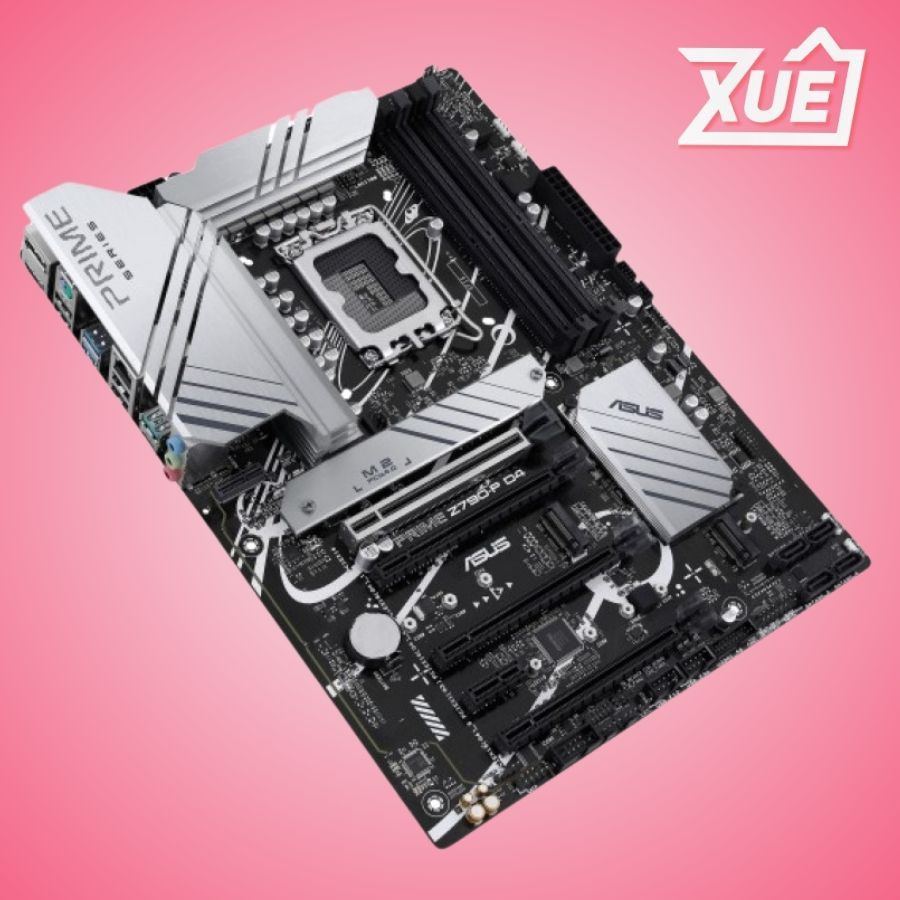

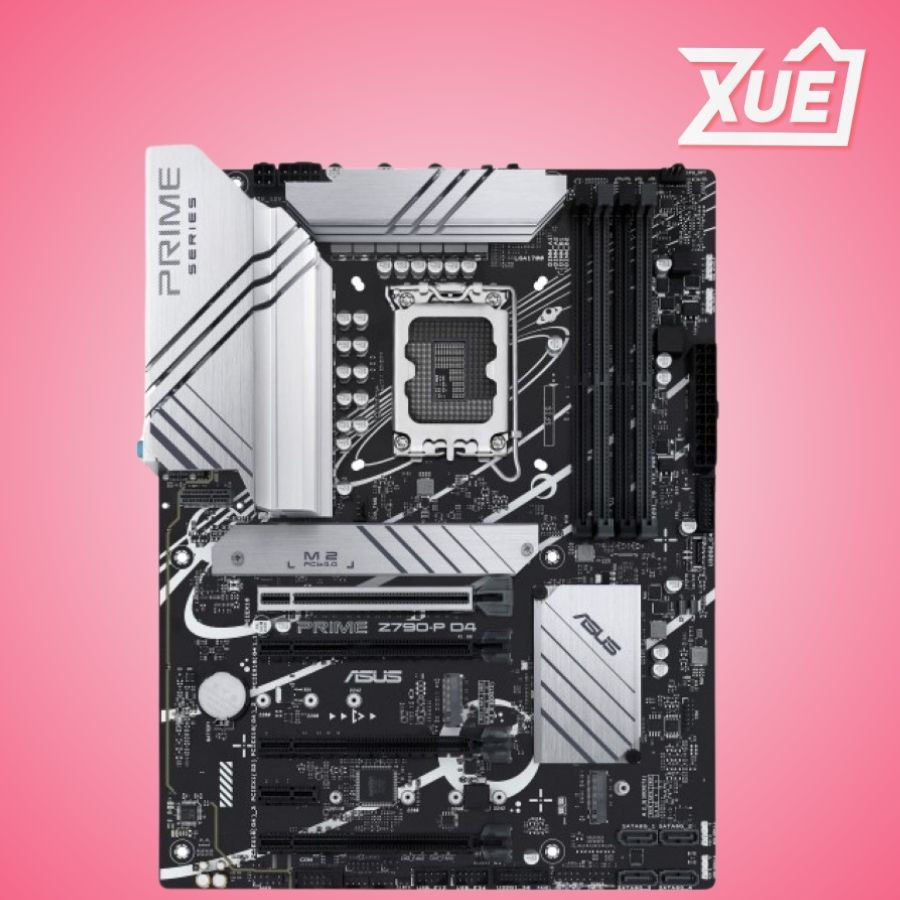

BO MẠCH CHỦ ASUS PRIME Z790-P D4-CSM

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

CPU hỗ trợ

Chipset

Intel Z790 Chipset

RAM hỗ trợ

4 x DIMM, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Khe cắm mở rộng

Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
3 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot

Ổ cứng hỗ trợ

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^® 13^th & 12^th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel^® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Cổng kết nối (Internal

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ (USB4®) Header

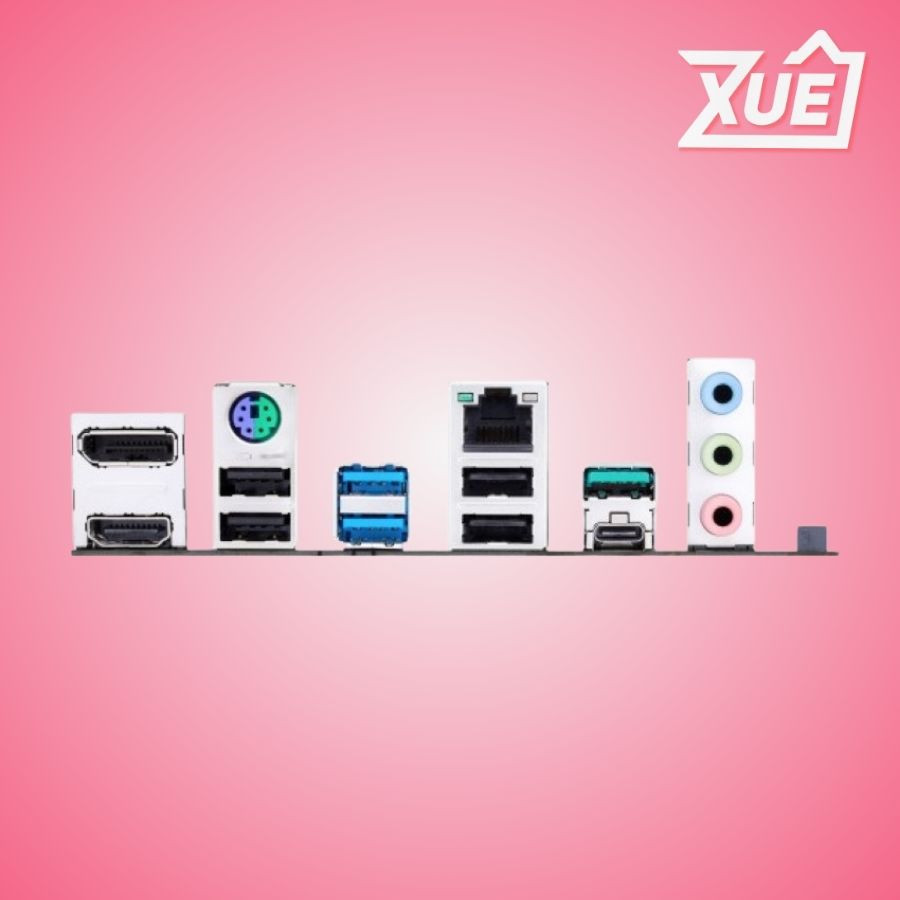

Cổng kết nối (Back Panel)

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

LAN

1 x Intel® 2.5Gb Ethernet

Kích cỡ

ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
