| Sản phẩm | Bo mạch chủ |
| Tên Hãng | Asrock |
| Model | H610MHVS DDR4 |
| CPU hỗ trợ | Intel |
| Chipset | H610 |
| RAM hỗ trợ | Dual Channel DDR4 Memory Technology |
| 2 x DDR4 DIMM Slots | |
| Supports DDR4 nonECC, unbuffered memory up to 3200 | |
| Supports ECC UDIMM memory modules (operate in nonECC mode) | |
| Max. capacity of system memory: 64GB | |
| Supports Intel® Extreme Memory Profile (XMP) 2.0 | |
| Khe cắm mở rộng | 1 x PCIe Gen4x16 Slot* |
| 1 x PCIe Gen3x1 Slot | |
| Ổ cứng hỗ trợ | 4 x SATA3 6.0 Gb/s Connectors |
| Cổng kết nối (Internal) | 1 x SPI TPM Header |
| 1 x Chassis Intrusion and Speaker Header | |
| 1 x CPU Fan Connector (4pin)* | |
| 1 x Chassis/Water Pump Fan Connector (4pin) (Smart Fan Speed Control)** | |
| 1 x 24 pin ATX Power Connector | |
| 1 x 8 pin 12V Power Connector | |
| 1 x Front Panel Audio Connector | |
| 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) | |
| 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) | |

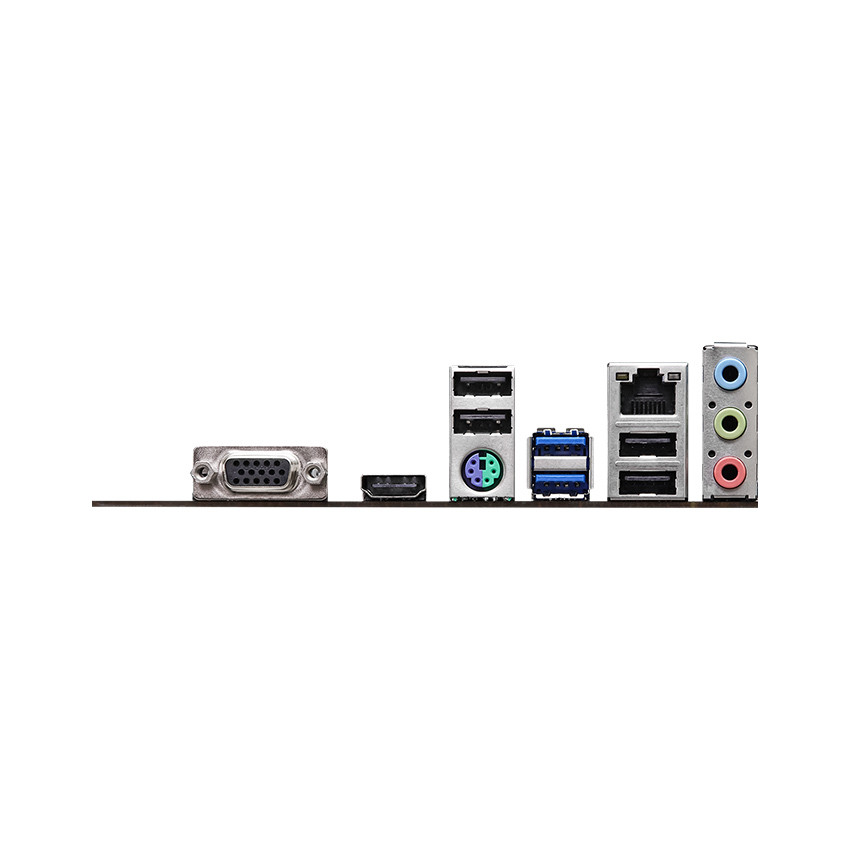

| Cổng kết nối (Back Panel) | 1 x PS/2 Mouse/Keyboard Port |
| 1 x DSub Port | |
| 1 x HDMI Port | |
| 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
| 4 x USB 2.0 Ports (Supports ESD Protection) | |
| 1 x RJ45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| LAN / Wireless | PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| 1 x Realtek RTL8111H | |
| Kích cỡ | Micro ATX Form Factor: 7.76in x 7.4in, 19.7 cm x 18.8 cm |
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | Asrock |
| Model | H610MHVS DDR4 |
| CPU hỗ trợ | Intel |
| Chipset | H610 |
| RAM hỗ trợ | Dual Channel DDR4 Memory Technology |
| 2 x DDR4 DIMM Slots | |
| Supports DDR4 nonECC, unbuffered memory up to 3200 | |
| Supports ECC UDIMM memory modules (operate in nonECC mode) | |
| Max. capacity of system memory: 64GB | |
| Supports Intel® Extreme Memory Profile (XMP) 2.0 | |
| Khe cắm mở rộng | 1 x PCIe Gen4x16 Slot* |
| 1 x PCIe Gen3x1 Slot | |
| Ổ cứng hỗ trợ | 4 x SATA3 6.0 Gb/s Connectors |
| Cổng kết nối (Internal) | 1 x SPI TPM Header |
| 1 x Chassis Intrusion and Speaker Header | |
| 1 x CPU Fan Connector (4pin)* | |
| 1 x Chassis/Water Pump Fan Connector (4pin) (Smart Fan Speed Control)** | |
| 1 x 24 pin ATX Power Connector | |
| 1 x 8 pin 12V Power Connector | |
| 1 x Front Panel Audio Connector | |
| 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) | |
| 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) | |
| Cổng kết nối (Back Panel) | 1 x PS/2 Mouse/Keyboard Port |
| 1 x DSub Port | |
| 1 x HDMI Port | |
| 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
| 4 x USB 2.0 Ports (Supports ESD Protection) | |
| 1 x RJ45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| LAN / Wireless | PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| 1 x Realtek RTL8111H | |
| Kích cỡ | Micro ATX Form Factor: 7.76in x 7.4in, 19.7 cm x 18.8 cm |
