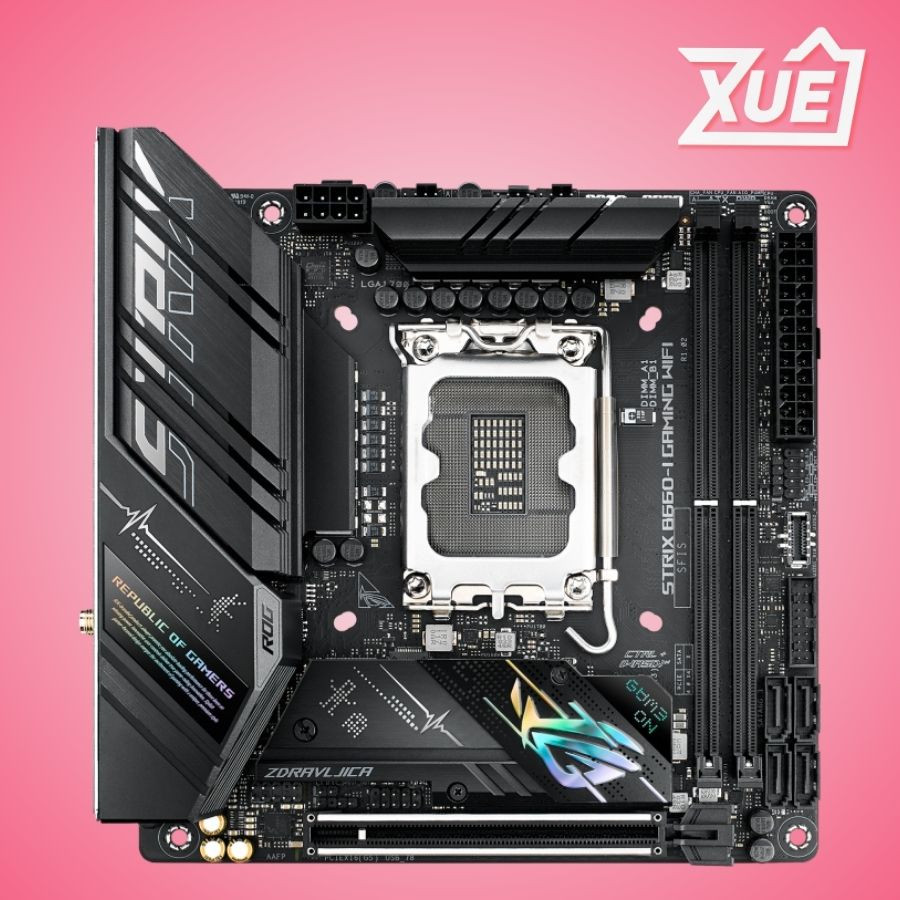

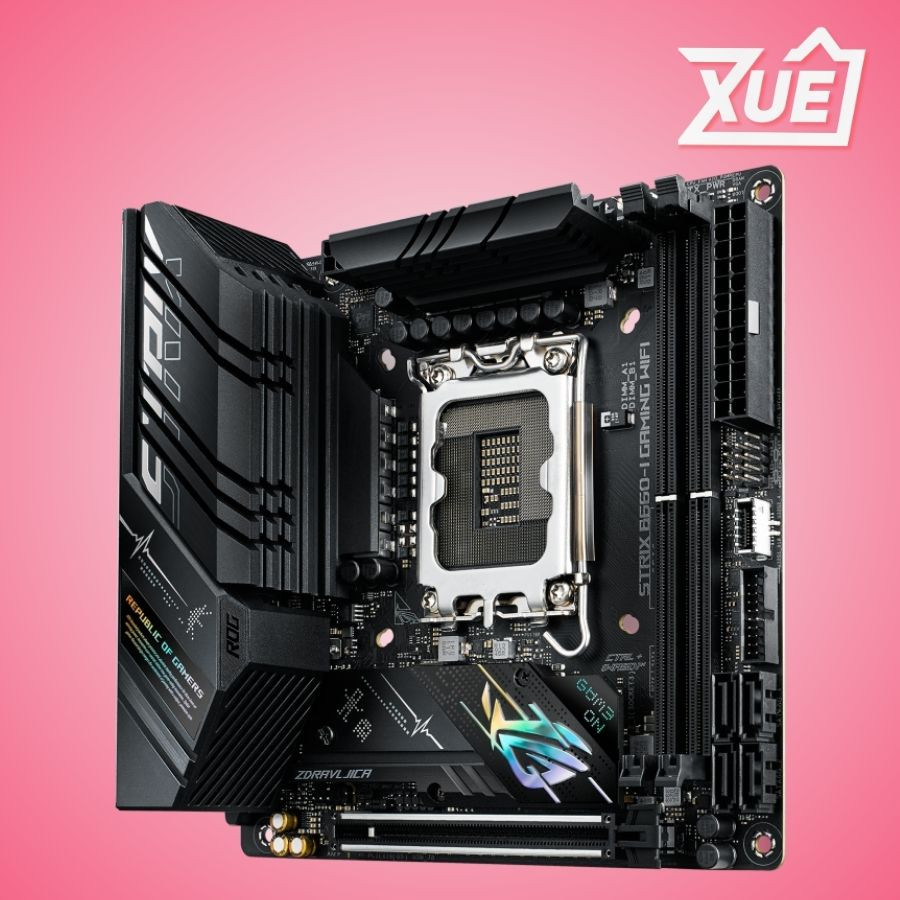

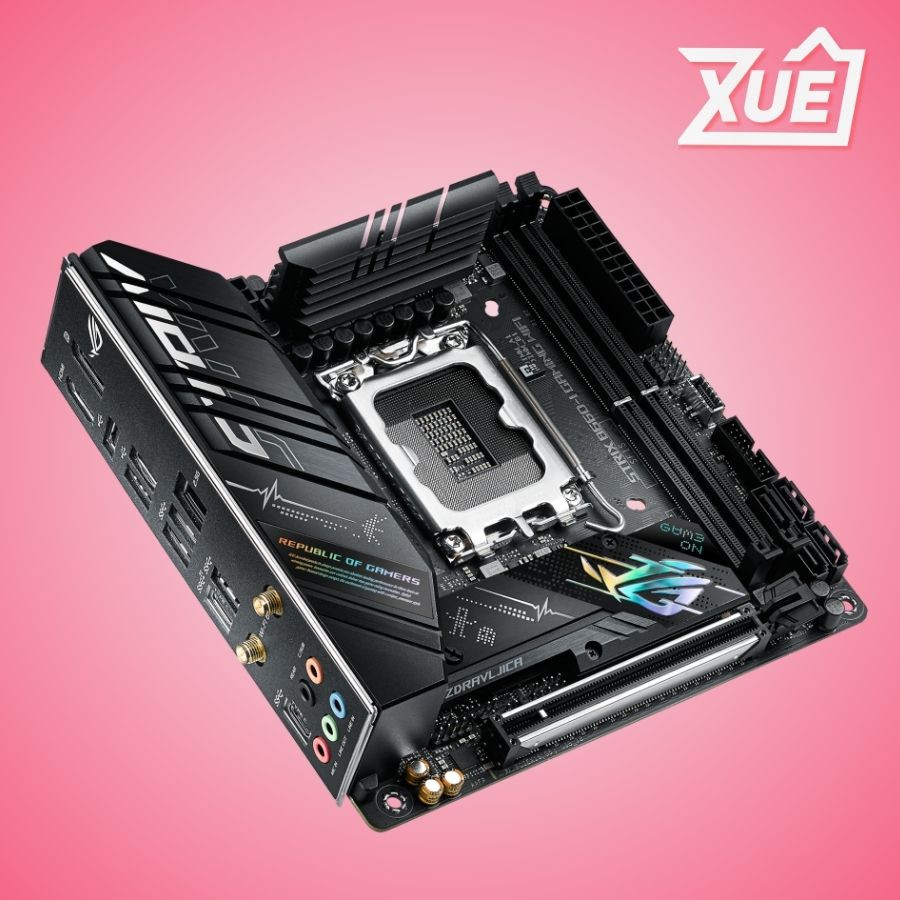

MAINBOARD ASUS ROG STRIX B660-I GAMING WIFI

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

B660-I Gaming Wifi DDr5

CPU hỗ trợ

Intel

Chipset

B660

RAM hỗ trợ

2 x DIMM, Max. 64GB, DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory

Khe cắm mở rộng

Intel® 12th Gen Processors*

1 x PCIe 5.0 x16 slot

Ổ cứng hỗ trợ

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel®12th Gen Processors*

M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)

Intel® B660 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 headers support additional 2 USB 2.0 ports

Miscellaneous

1 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x 10-1 pin System Panel header

Cổng kết nối (Back Panel)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®)

3 x USB 2.0 ports (3 x Type-A)

1 x HDMI® port

1 x DisplayPort

1 x Wi-Fi Module

1 x Intel® I225-V 2.5Gb Ethernet

5 x Audio jacks

LAN / Wireless

Wi-Fi 6

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2

Kích cỡ

Mini-ITX Form Factor

6.7 inch x 6.7 inch ( 17 cm x 17 cm )
