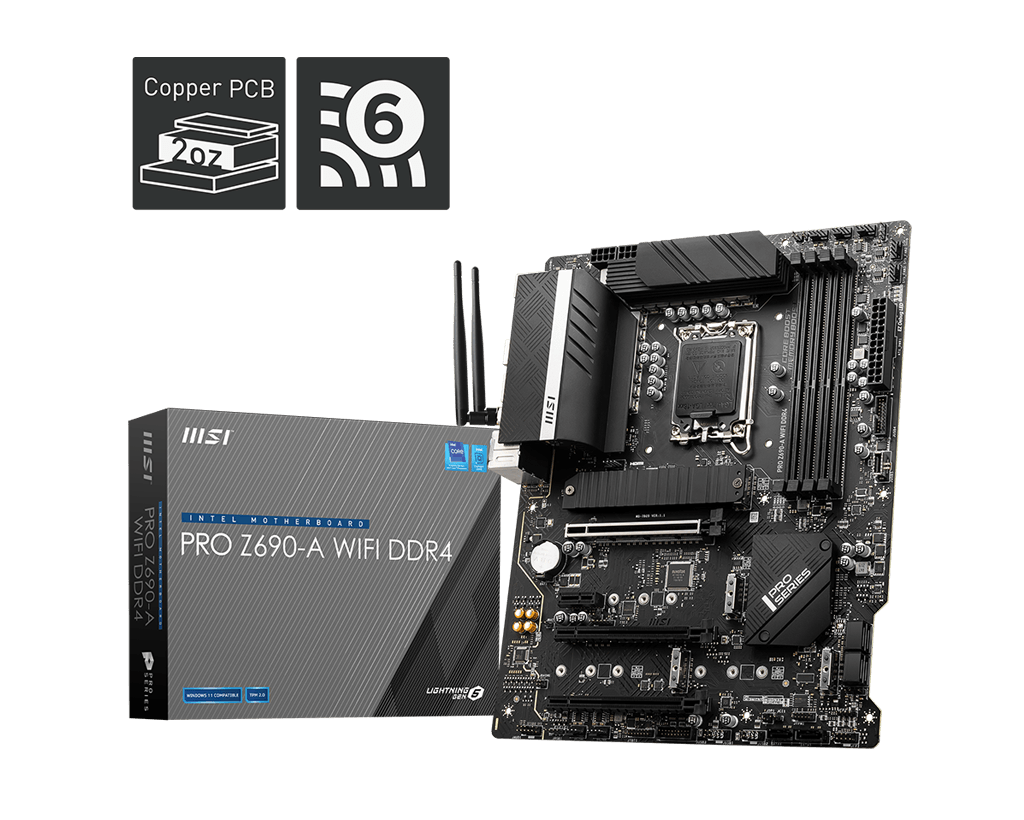

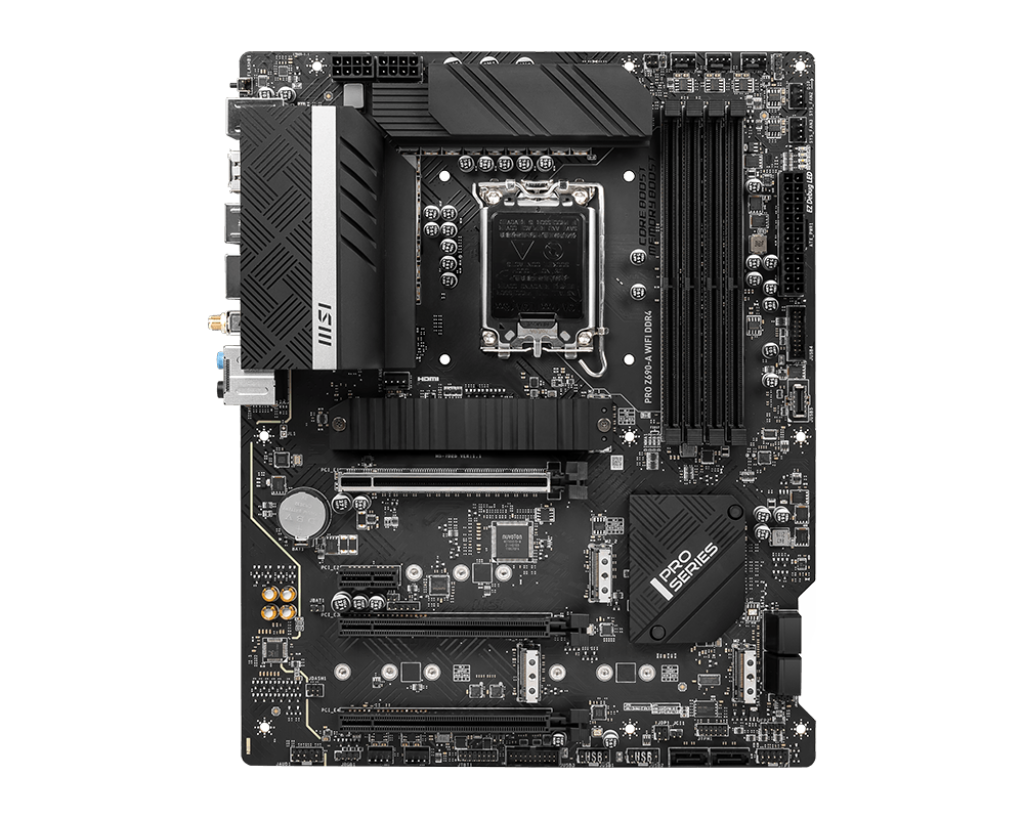

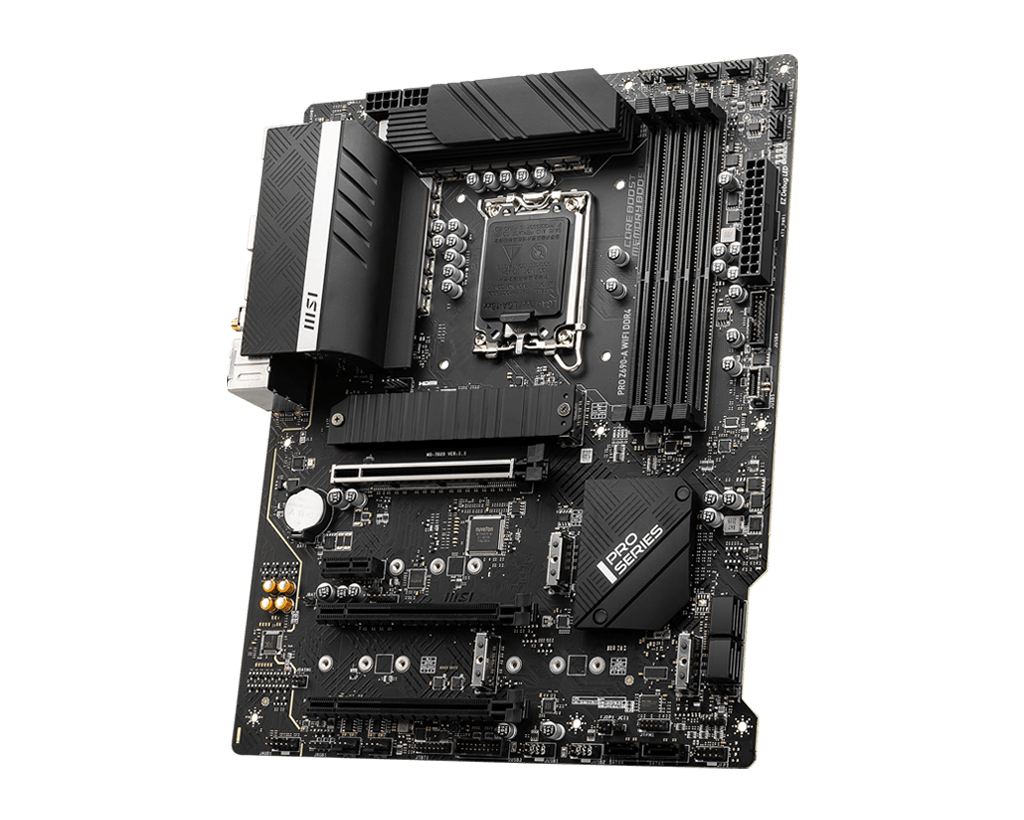

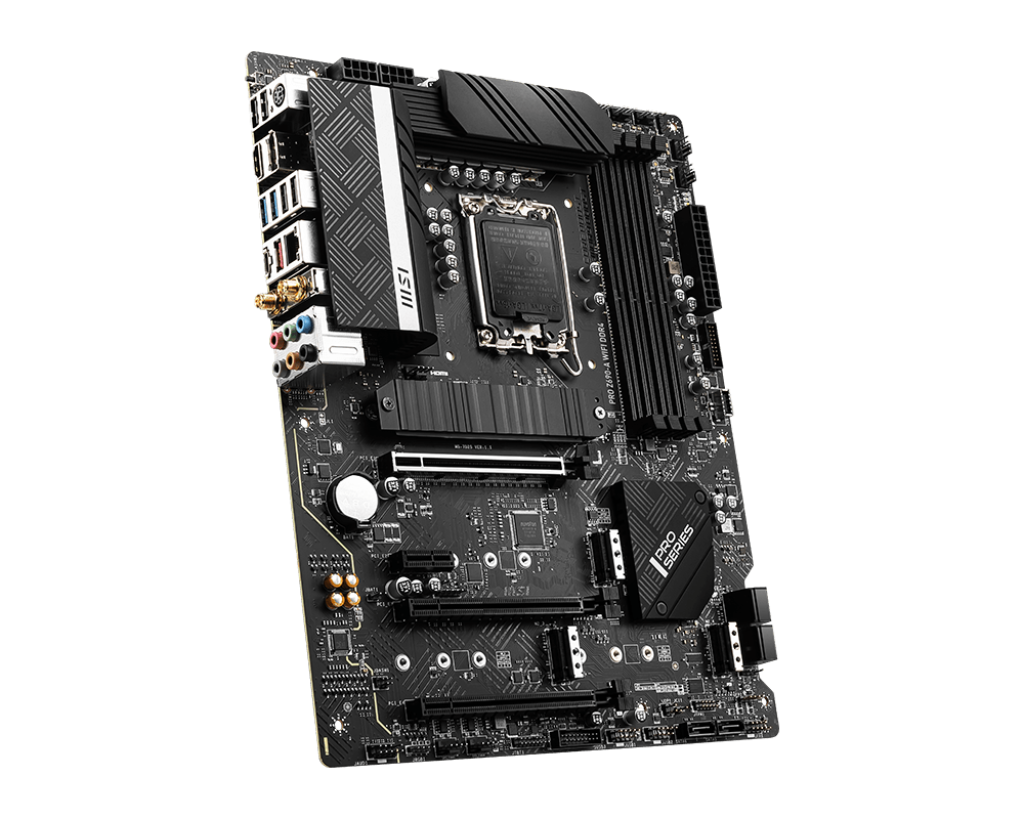

MAINBOARD MSI PRO Z690-A WIFI D4

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

PRO Z690-A WIFI

CPU hỗ trợ

Intel

Chipset

Z690

RAM hỗ trợ

4x DDR4 memory slots, support up to 128GB

Khe cắm mở rộng

Ổ cứng hỗ trợ

Cổng kết nối (Internal)

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 6-pin ATX PCIe power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Serial port connector
1x Tuning controller connector
1x TBT connector (Supports RTD3)

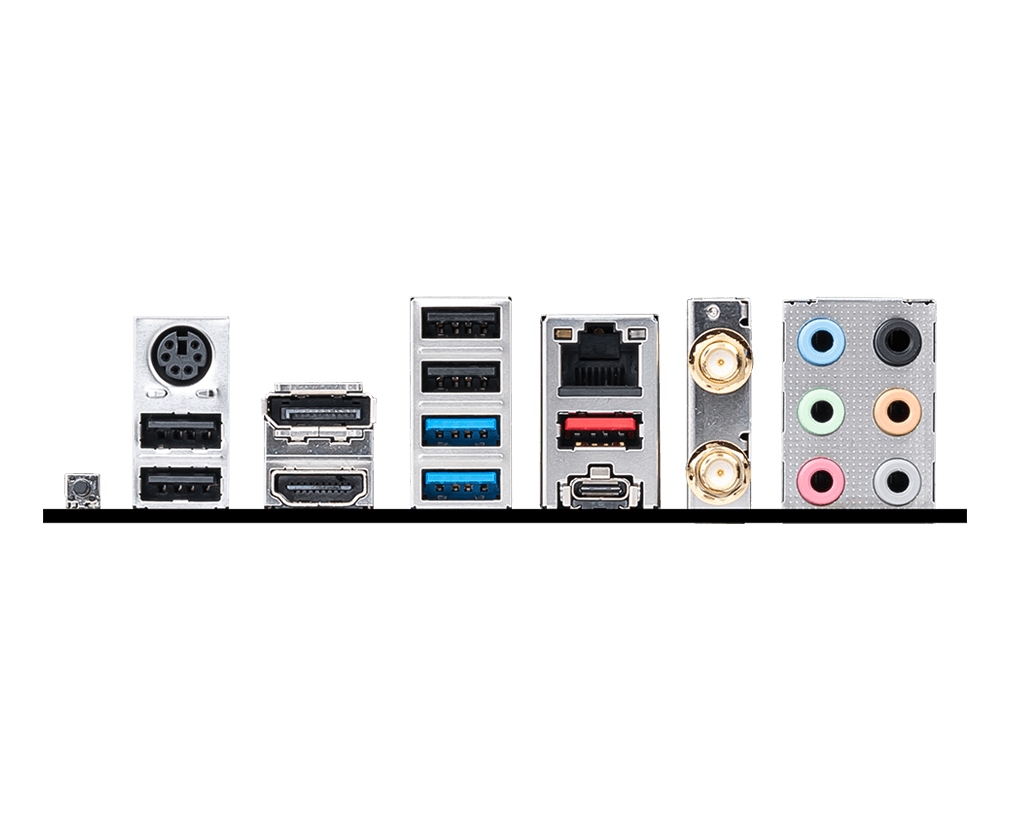

Cổng kết nối (Back Panel)

1 x HDMI
1 x LAN port
1 x Audio connector
1 x wifi/bluetooth
4 x USB 2.0
1 x DP
1 x PS2
2 x USB 3.2 Gen 1 5Gbps Type A
1 x USB 3.2 Gen 2 10Gbps Type A
1 x USB 3.2 gen 2x2 20Gbps Type c

LAN / Wireless

1x Intel® I225V 2.5Gbps LAN controller

Kích cỡ

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
