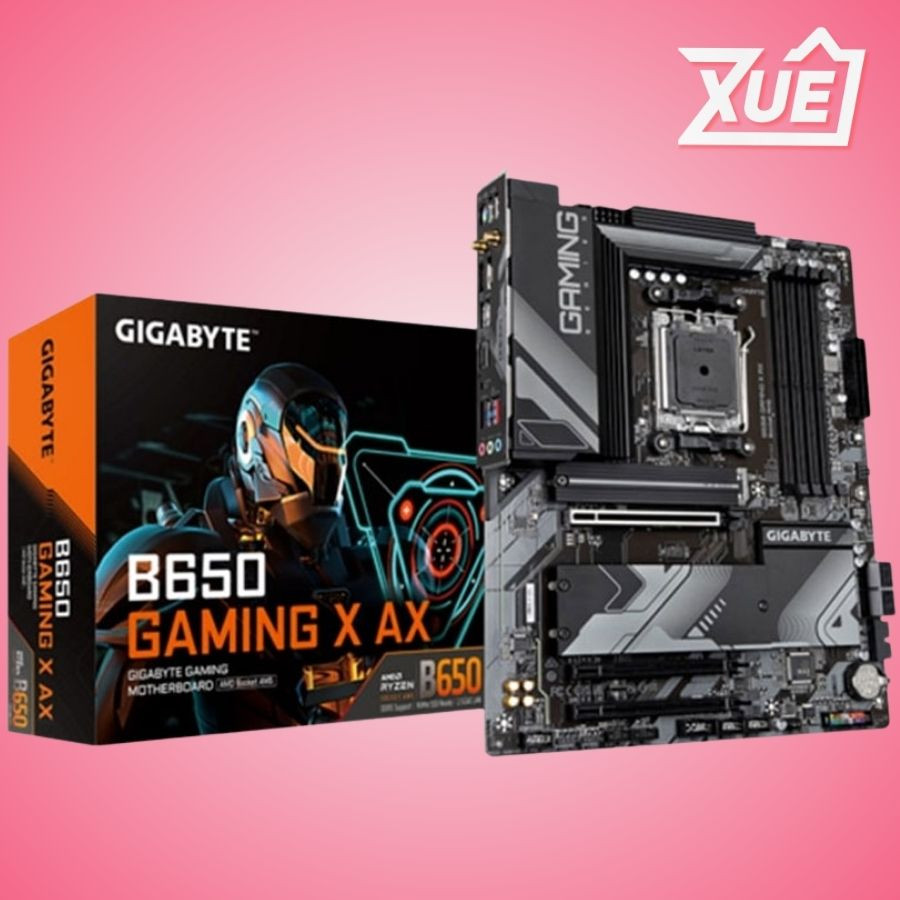

BO MẠCH CHỦ GIGABYTE B650 GAMING X AX DDR5 (WIFI+BLUETOOTH)

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

B650 Gaming X AX DDR5

CPU hỗ trợ

AMD

Chipset

B650

RAM hỗ trợ

Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Khe cắm mở rộng

CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Ổ cứng hỗ trợ

CPU:

1. 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU, M2B_CPU)

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
2. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 2 x system fan headers
7. 1 x system fan/water cooling pump header
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 1 x CPU cooler LED strip/RGB LED strip header
11. 3 x M.2 Socket 3 connectors
12. 4 x SATA 6Gb/s connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x USB Type-C^® header, with USB 3.2 Gen 2x2 support
16. 1 x USB 3.2 Gen 1 header
17. 2 x USB 2.0/1.1 headers
18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
19. 1 x serial port header
20. 1 x reset button
21. 1 x reset jumper
22. 1 x Clear CMOS jumper

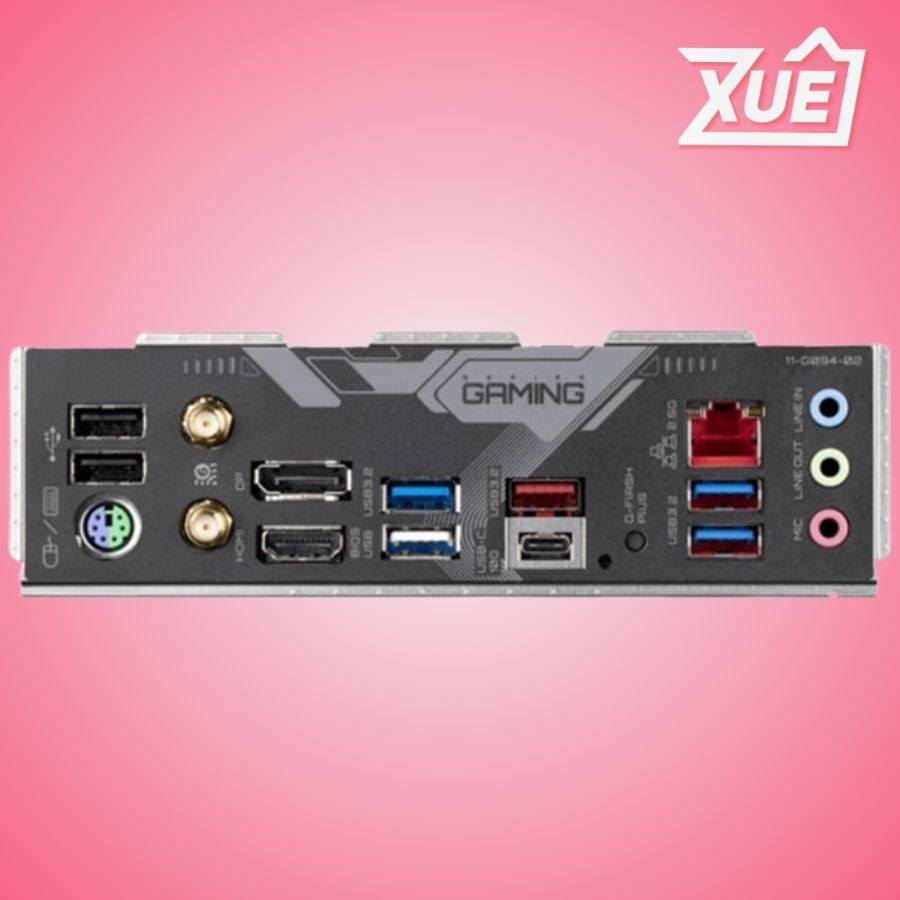

Cổng kết nối (Back Panel)

1. 2 x SMA antenna connectors (2T2R)
2. 1 x Q-Flash Plus button
3. 1 x DisplayPort
4. 1 x HDMI port
5. 1 x USB Type-C^® port, with USB 3.2 Gen 2 support
6. 1 x USB 3.2 Gen 2 Type-A port (red)
7. 3 x USB 3.2 Gen 1 ports
8. 3 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 3 x audio jacks

LAN / Wireless

Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm
