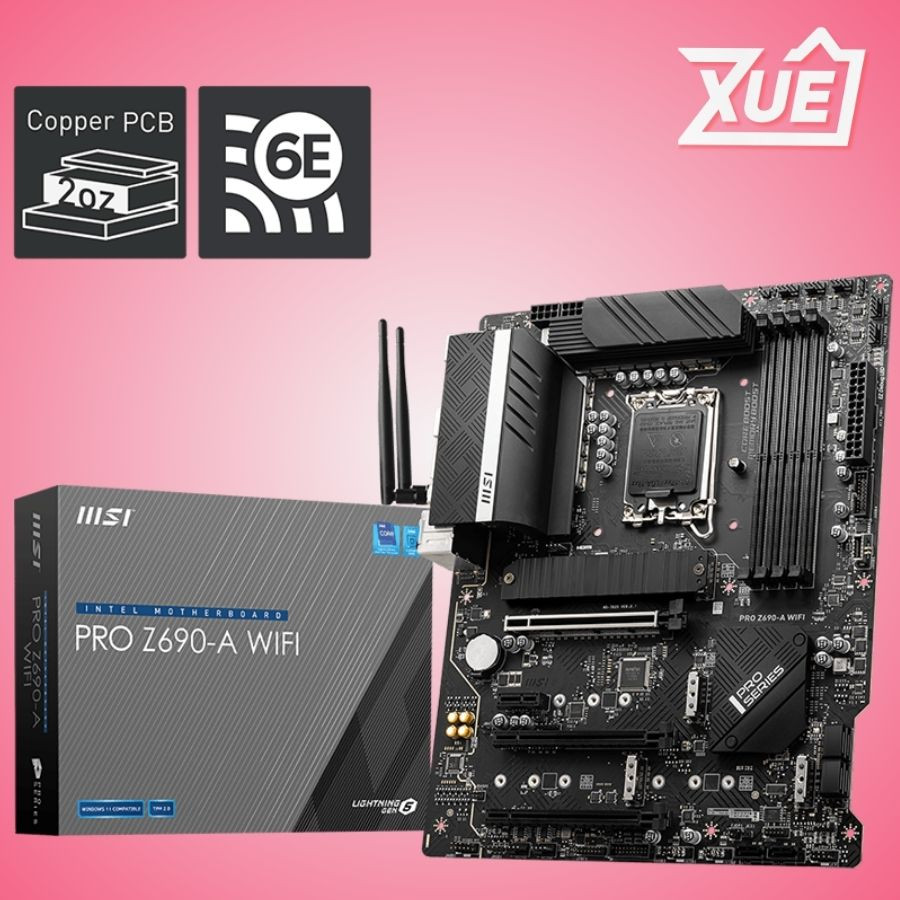

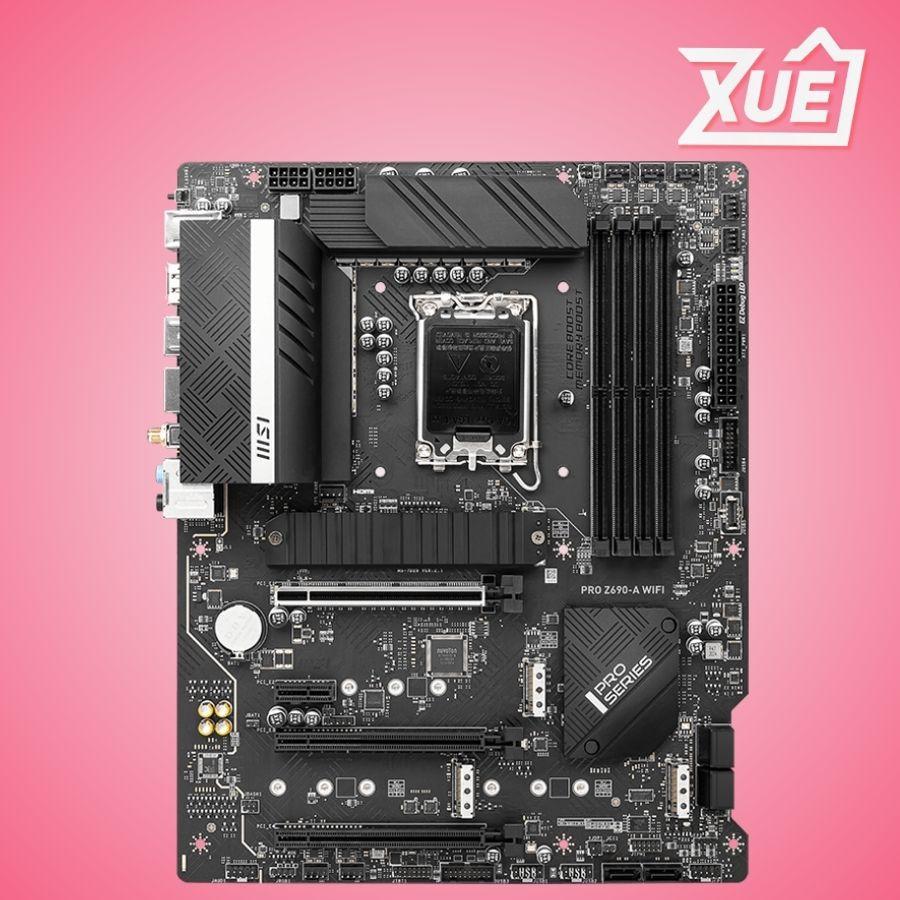

MAINBOARD MSI PRO Z690-A WIFI DDR5

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

PRO Z690-A WIFI DDR5

CPU hỗ trợ

Intel

Chipset

Z690

RAM hỗ trợ

4x DDR5 memory slots, supporting up to 192GB 1
Supports 1R 5600 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 6400+ MHz
1DPC 2R Max speed up to 6000+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Khe cắm mở rộng

3 x PCI-E X16, 1 x PCI-E X1,

Ổ cứng hỗ trợ

6x SATA 6Gb/s ports (from Z690 chipset)
4x M.2 slots (Key M)
M2_1 slot (from CPU)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from Z690 chipset)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_3 slot (from Z690 chipset)
Supports PCIe 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (from Z690 chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset
Support Intel® Smart Response Technology for Intel Core™ processors

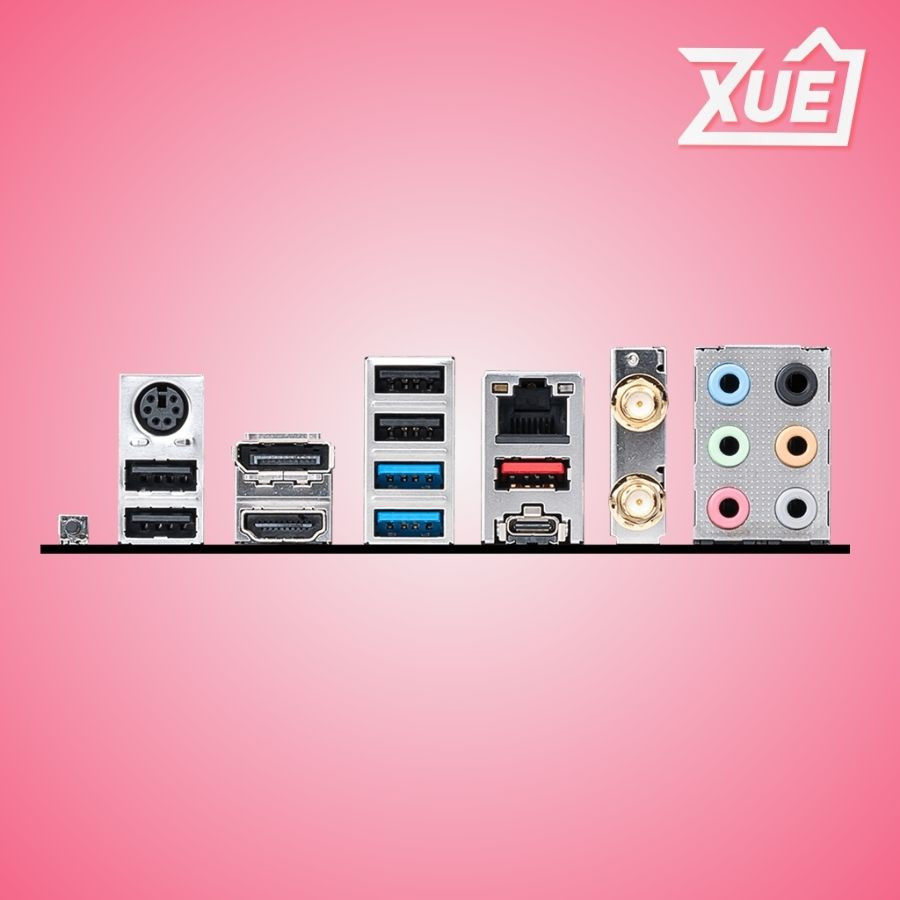

Cổng kết nối (Internal)

Keyboard / Mouse
DisplayPort
USB 2.0
LAN port
WIFI / Bluetooth
Audio connector
Flash BIOS Button
USB 2.0
HDMI™
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A

LAN / Wireless

1x Intel® I225-V 2.5Gbps LAN controller

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1(160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.32, FIPS, FISMA

Kích cỡ

ATX
