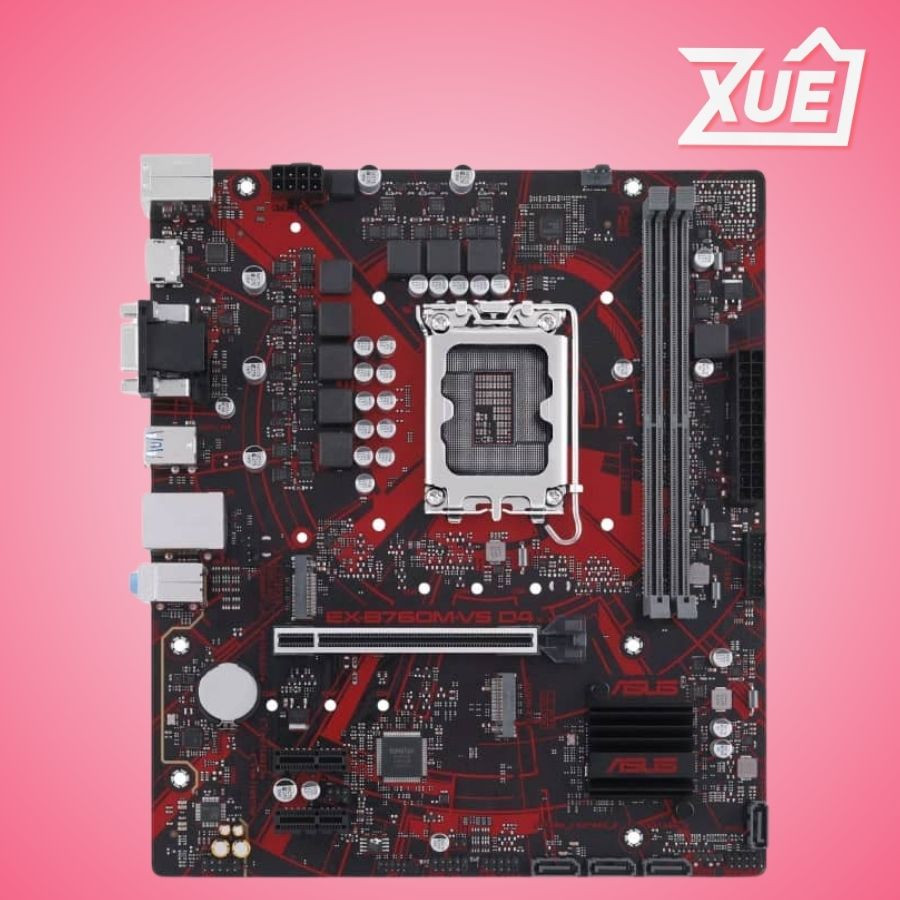

BO MẠCH CHỦ ASUS EX B760M-V5 DDR4

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

EX-B760M-V5 DDR4

CPU hỗ trợ

Intel

Chipset

B760

RAM hỗ trợ

2 x DIMM, Max. 64GB, DDR4
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)
3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Khe cắm mở rộng

Intel^® 13^th & 12^th Gen Processors
1 x PCIe 4.0 x16 slot
Intel^® B760 Chipset
2 x PCIe 4.0 x1 slots

Ổ cứng hỗ trợ

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^® 13^th & 12^th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel^® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Cổng kết nối (Internal)

Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x 10-1 pin System Panel header

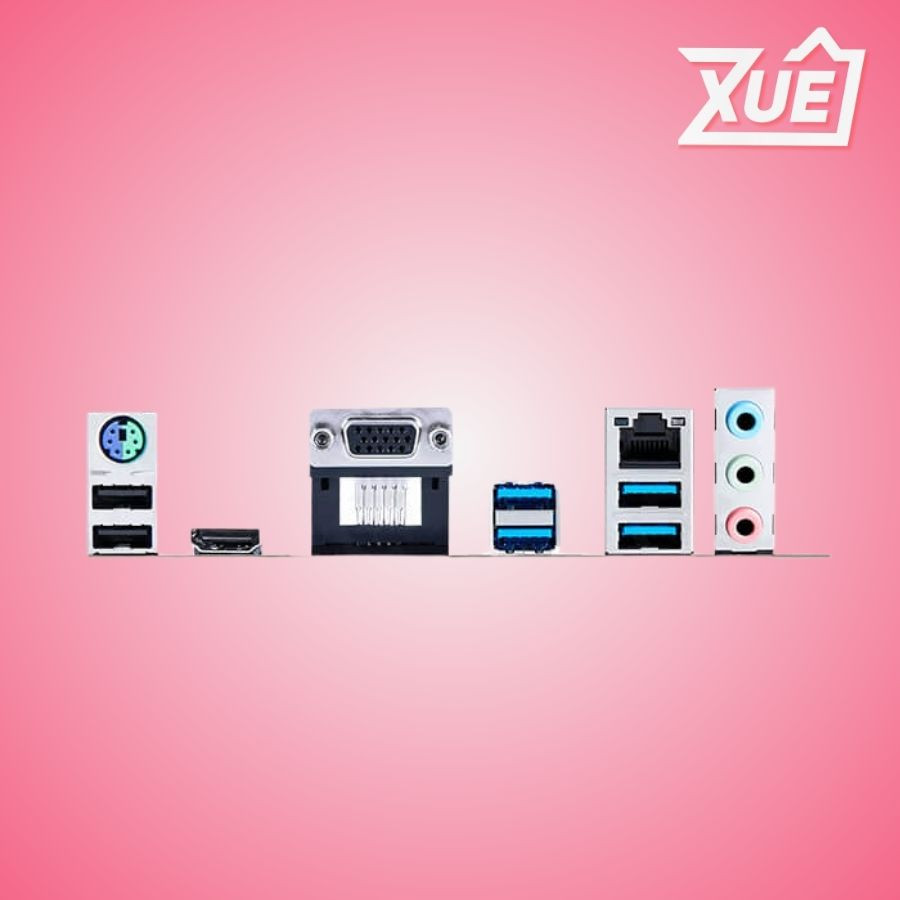

Cổng kết nối (Back Panel)

4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA port
1 x HDMI^® port
3 x Audio jacks
1 x Realtek 2.5Gb Ethernet port
1 x PS/2 Keyboard/Mouse combo port

LAN / Wireless

1 x Realtek 2.5Gb Ethernet

Kích cỡ

mATX Form Factor
9.6 inch x 8.3 inch(24.4cm x 21.1cm)
